Why the Cobb AP Should Be Your WRX’s First Modification Blog Feature

By: Alan Jackson on December 9th, 2015

Print/Save as PDF

Why the Cobb AP Should Be Your WRX’s First Modification

Subaru WRX / WRX STI | Parts


Modified Subarus have been around for quite some time now and fortunately for our generation, modifying them keeps getting easier and easier, albeit more technical. The Subaru WRX and STI are great cars out of the box but if you're reading this, you are probably itching to modify yours.  In the world of 2015 WRX mods (and newer), there are plenty performance parts to choose from.


A little over a month ago, I picked up my second Subaru. My first being a 1996 Impreza Outback Sport and my second/current being a 2016 WRX. Like a good amount of other WRX owners out there, I have decided to modify my car to give it a little more personality and performance output. To start, I picked up a Cobb Accessport and started down the road to tuning and upgrades.

Why_the_Cobb_AP_Should_Be_Your_WRXs_First_Modification_1.jpg Why_the_Cobb_AP_Should_Be_Your_WRXs_First_Modification_5.jpg



What is a Cobb Tuning AccessPort?

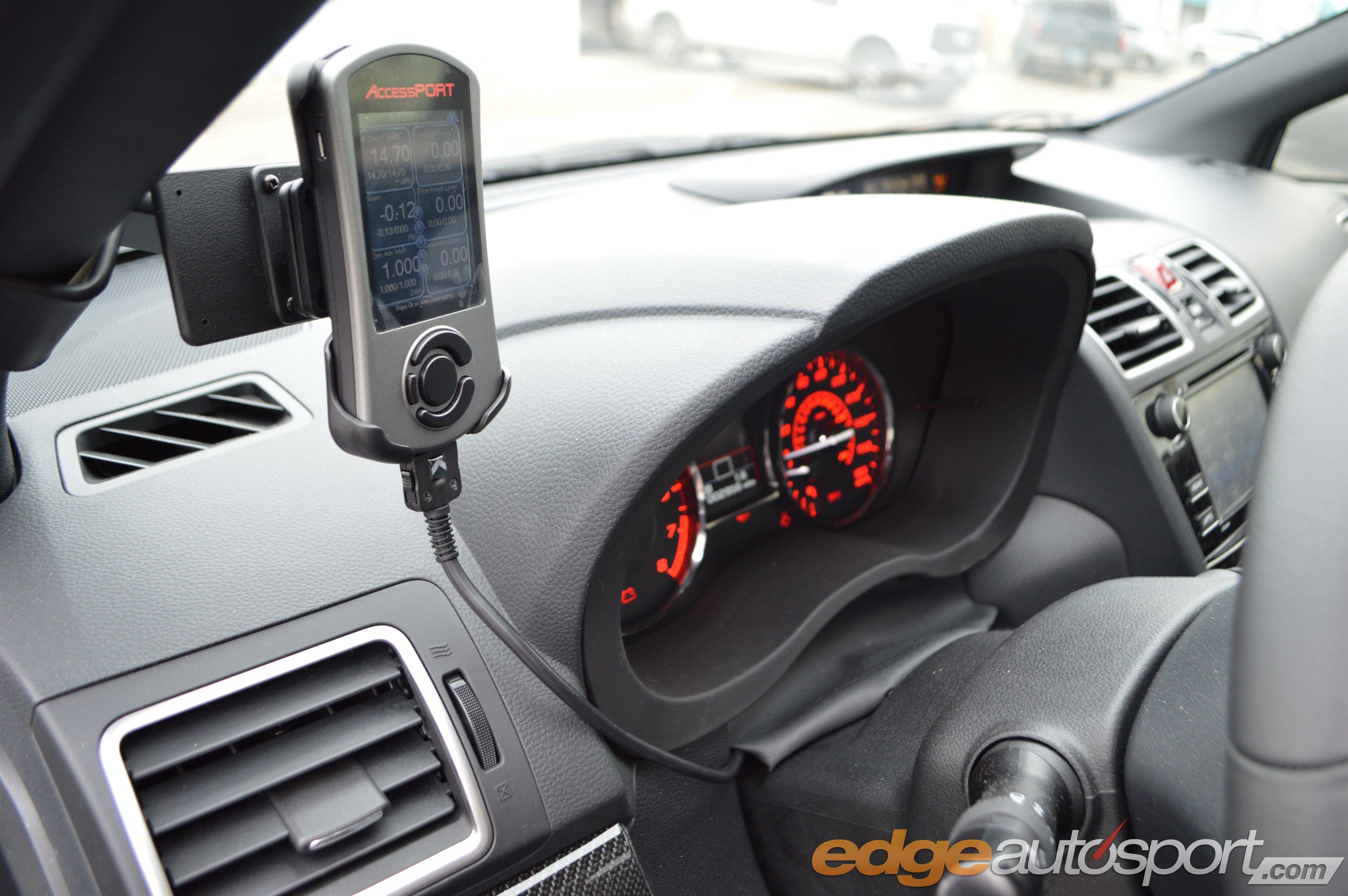

The AccessPort is an ECU flashing tool that also doubles as a multi gauge display. It has a large color screen and many features that allow you to have a closer/more in depth understanding of exactly what is going on with your car, mainly the engine. It’s the world’s most flexible and easy to use ECU flashing device for your Subaru.  To be more specific, it can read values such as boost pressure, air/fuel ratio, knock retard, ignition timing, and many more.

How does it work?

The AccessPort plugs into the OBD2 plug located below the driver's side dash area.  Once plugged in, you can switch maps or just leave it plugged in while you drive to monitor the ECU functions associated with the various sensors around the car like the O2 sensor (AFR), MAP Sensor (Boost Pressure), etc.

Why_the_Cobb_AP_Should_Be_Your_WRXs_First_Modification_3.jpg Why_the_Cobb_AP_Should_Be_Your_WRXs_First_Modification_16.jpg





Already have an AccessPort (or already know why you need one)?  Check out more bolt-ons and easy upgrades you can do to your WRX FA20DIT to give it some more go.>>>




That’s cool that it can monitor ECU readouts but why do you need it?


Everything you change or modify in relation to engine performance on your Subaru affects the airflow and/or fuel that goes into the engine. Although easy to learn about, changing these things is a delicate art. If you install an intake that will help to get more air in, the car will need more fuel. Without this added fuel you will run lean and possibly do some expensive damage at worst and at least, your car might lose fuel mileage or just not run very smooth.

Here is an example of what a typical dyno plot will look like after you flash the ECU with a Stage 1 OTS map.  This is on a completely stock WRX with no modifications other than the AccessPort.  The engine picked up a peak difference of +25hp and +14tq!  In addition, you can see the torque curve (dotted line) hold a higher amount of torque through almost the entire RPM range which is VERY noticeable while driving the car.  This is really what makes the car come alive.




How does it know what parts are on my WRX?


Well it doesn’t… But Cobb Tuning built a bunch of off-the-shelf maps (ots maps) that cover a wide range of mods. These ots maps will make tuning your WRX easy and will allow you to install pretty much all the major bolt-on parts you could want without having to get a custom tune. This will save you a considerable amount of time and money.  The tunes are downloadable through Cobb's website and the most current maps are preloaded onto the AccessPort before you get it.  If there are ever any updates to specific maps, you can download them for free from Cobb's site and upload them to your AccessPort, then your car.

Here is what the typical process of flashing your ECU looks like.

Why_the_Cobb_AP_Should_Be_Your_WRXs_First_Modification_9.jpg Why_the_Cobb_AP_Should_Be_Your_WRXs_First_Modification_10.jpg Why_the_Cobb_AP_Should_Be_Your_WRXs_First_Modification_11.jpg

Why_the_Cobb_AP_Should_Be_Your_WRXs_First_Modification_12.jpg Why_the_Cobb_AP_Should_Be_Your_WRXs_First_Modification_13.jpg Why_the_Cobb_AP_Should_Be_Your_WRXs_First_Modification_15.jpg


My own experience...

Starting off with my Accessport, I didn’t immediately flash a higher performance map.  This way, I could get some datalogs that show how it performs from the factory. Then I flashed the stage 1 OTS Map and immediately picked up 25whp according to virtual dyno. Aside from the power gains, drivability is certainly improved and I am thrilled with the power delivery up top. The car is still all stock aside from the tune.

Things I’ve noticed.

One of the first things I noticed was how the factory tune allows the car to run lean for a bit into a wide open throttle pull before going pig rich. This is not ideal from a safety standpoint though I’m sure it improves emissions. With the stage 1 tune flashed, the throttle response is now much smoother and more predictable. I love the way the car behaves now.


Whats next?

Since I have the AP, I have the option to use OTS Tunes now and then start adding my parts on. However, I will be tuning this car myself and will be documenting my steps along the way. Up next, I have a Grimmspeed 3 port ready to go on as well as an EGR Delete (both items you need to custom tune for) and soon I will be getting a downpipe (works with OTS maps). The AP gives me the option to mod how I please whether I utilize custom tuning with ATR (AccessTuner Race, the user interface for Cobb's tuning software) or Cobb’s provided OTS Maps, and there is nothing stopping me from adding all these parts safely.  This is why the AP should be the first mod you get for your WRX.

Check out the WRX AccessPort for your direct injected turbo WRX right here.  Up to the date of this blog, this will work with all 2015-2017 Subaru WRX models with the FA20DIT engine.
